H-Series
Hazardous Location Servo Press & Station
H-Series
The H-Series is a line of systems rated for use in Class II Division 1 (C2D1) hazardous locations, Group E, F & G. Designed for mission-critical defense and industrial use, the Promess H-Series offers all the capabilities of the Promess servo press with a C2D1 rating.
The H-Series offers a standalone press or a complete station depending on the needs of the applications. With versatile capabilities, Promess H-Series systems are intrinsically safe in both inert and hazardous manufacturing locations.
H-Series Press
The Promess H-Series Press provides high-precision force control and measurement in environments where safety and reliability are critical. Designed to meet C2D1 hazardous location standards, this intrinsically safe press is ideal for operations involving energetic materials and volatile atmospheres. With versatile capabilities, Promess systems are reliable in both inert and hazardous manufacturing locations

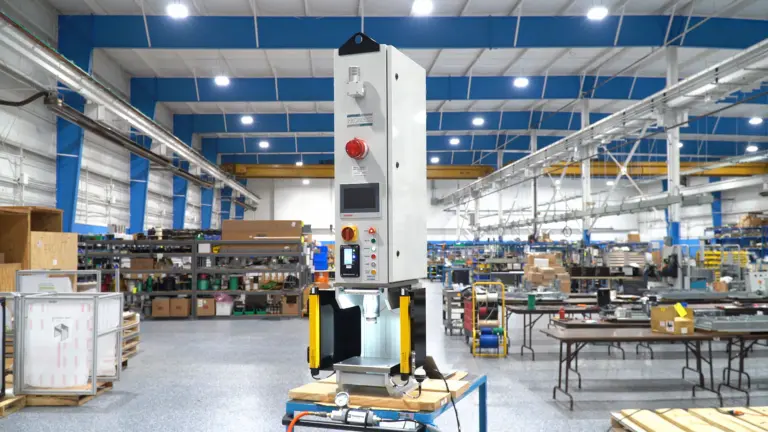

H-Series Station
The H-Series Station combines the power of the H-Series Press with a fully integrated station, offering a turnkey solution for complex manufacturing needs. With a variety of configurations and advanced sensing technology, this station guarantees accurate force control and real-time data monitoring. Designed for safety and performance, the Promess H-Series Station is reliable in both inert and hazardous manufacturing locations
Features & Capabilities
Features
+ Precise control
+ Closed-loop movement to a position or force
+ Closed-loop movement to an external sensor
+ External signals can include: force, position, flow, pressure, temperature, etc.
+ Signature monitoring
+ Network multiple part programs
+ Calibrated for work in compression or tension
+ Easy programming
+ Press and maintains force
Monitoring Capabilities
+ Force/position signature monitoring
+ Force signature is learned by a teach-in process
+ Adjustable process limits and tolerances
+ Display of force/position graphs, zooming and printing
+ Gauging functions
+ Data acquisition and storage
+ Pass / fail parts
+ Advanced data analysis
Do you need a C2D1 Press or Station?
Talk to one of our expert engineers to learn more.
System Powered By Promess Software
Promess powerful system software solution offers custom commands, flexible configurations, and adjustable features to address your specific needs.
Multi-Axis Motion Control Supports complex pressing and torquing operations with synchronized multi-axis movement.
Advanced Sensing Capabilities Integrates multiple sensors for real-time monitoring of force, position, angle, and more.
Flexible Data Management Includes data storage, custom formulas, debugging tools, and event logging.

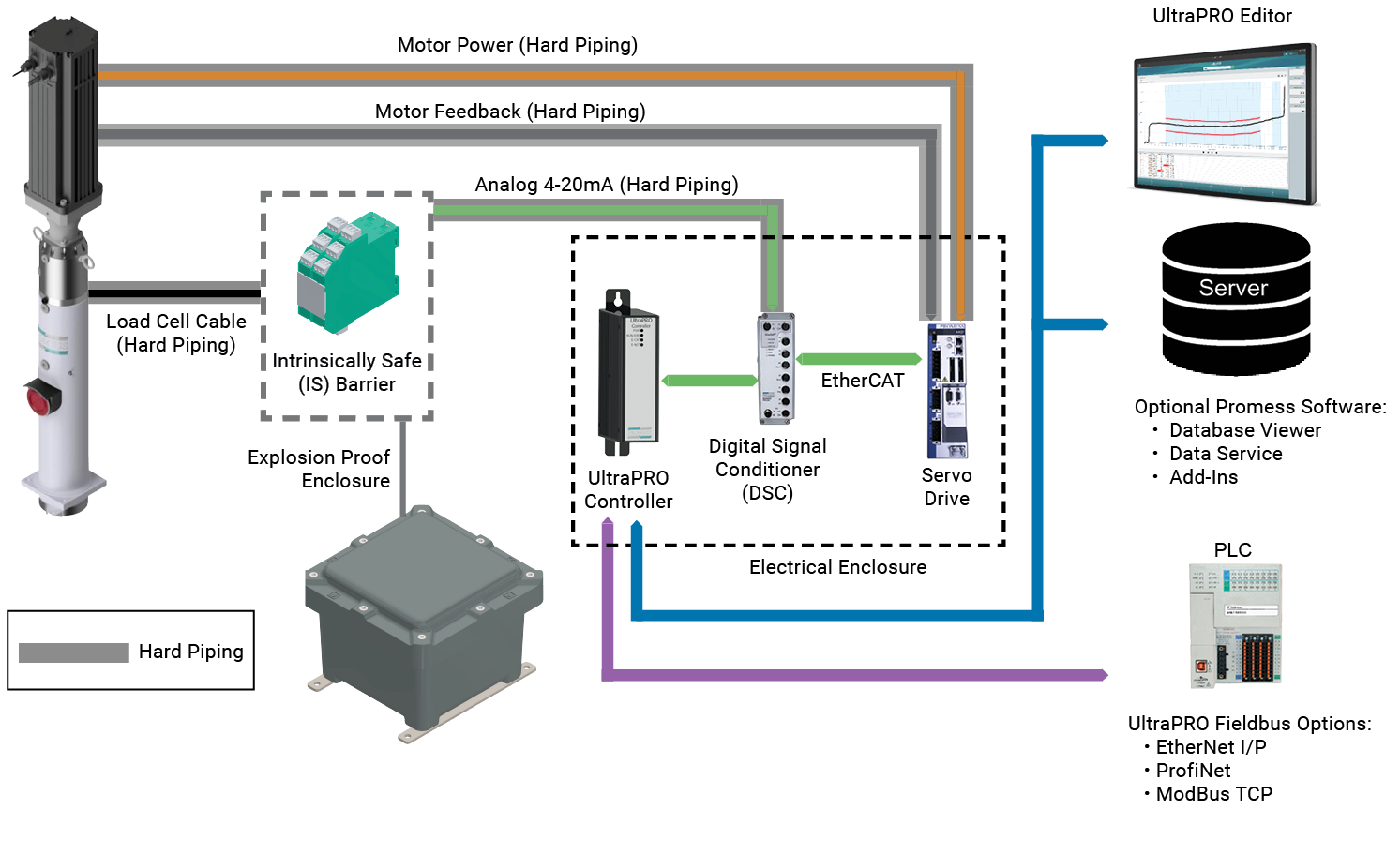

System Layout
Applications
Crimping, Compaction, Pressing, Benching, Staking, Forming, Riveting
CRIMPING

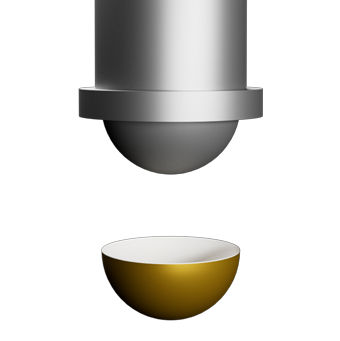

COMPACTION
PRESSING
RIVETING
STAKING
FORMING
H-Series Applications
Nuclear fuel compaction
Ordinance charge assembly
Ordinance fuse assembly
Primer assembly
Pyrotechnics assembly – fireworks, flares
Charges for fracking
H-Series Press Sizing
| FORCE (kN) | STROKE (mm) | SPEED (mm/sec) |
|---|---|---|
| 10 | 350 | 100 |
| 30 | 350 | 100 |
| 50 | 330 | 100 |
| 100 | 330 | 50 |
| 300 | 400 | 100 |
| 500 | 400 | 70 |
*Needed size not listed? Contact us to discuss options.
