ELECTRIC PRESS WORK STATION

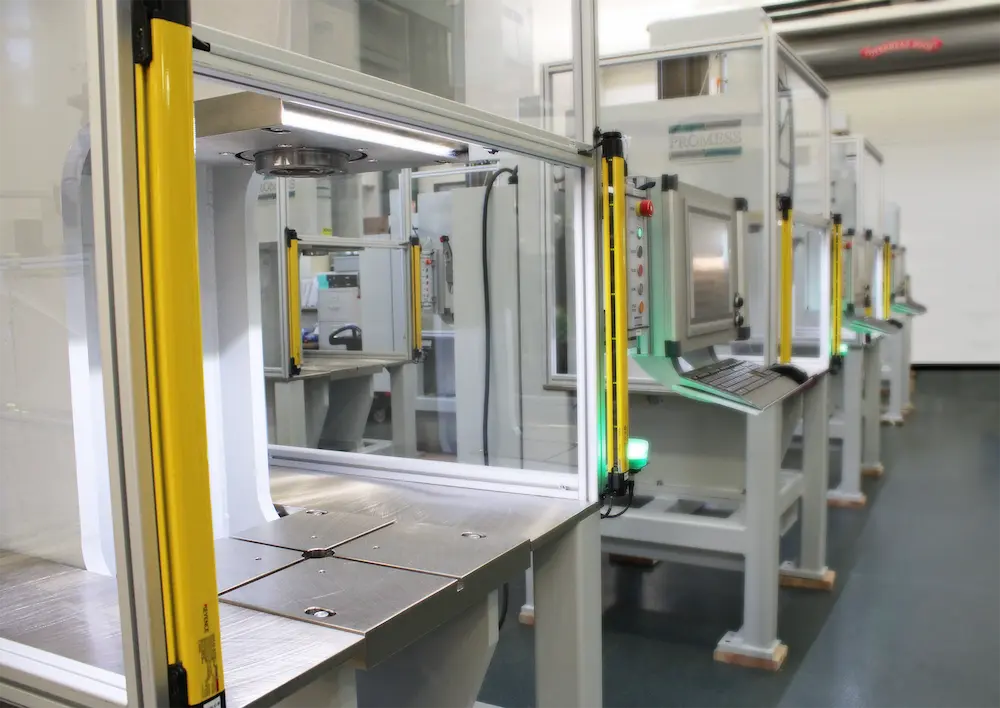

Electric Press Work Stations
The Promess Electric Press Work Station is a fully electric stand-alone unit with an integrated Promess Electro Mechanical Assembly Servo Press (EMAP), REMAP or TorquePRO.
The Promess Work Station offers you the most competitive, accurate, and efficient solution to any assembly requirement.
Controllability
- Integrated with EMAP, REMAP or TorquePRO
- Simple Programming
- Position Sensing
- Force Feedback
Simple Integration
- Can be used by an operator or automatically loaded
- Simple controls – No PLC needed
- Tailored foundation for assembly or test applications, in both production or R&D
- Plug and Play – Add power and tooling and run parts within hours
Scalability
- Standard Station sizes with short lead times
- Easily add capacity to any production scenario
- Repurpose as production numbers scale down
Standard Frame Options

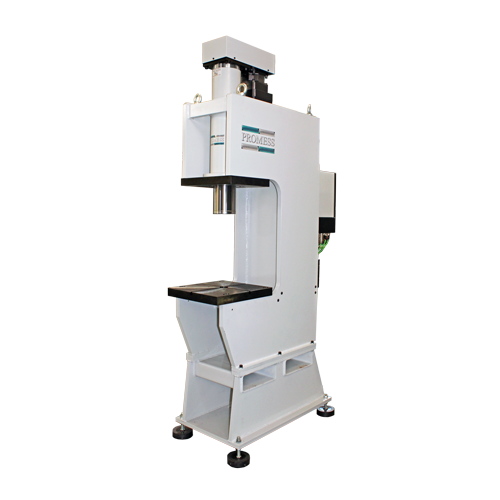

C-Frame
4-Post
Torque Table
Various standard size stations support different framing options and equipment sizes.
See our more tailored solutions
Work Station Benefits
PRECISE
Control allows for a high level of accuracy in force and position applications
PROGRAMMABLE
Control system and motion components work together in both simple and complex configurations
ENERGY EFFICIENT
Electric Presses are energy conscious and have high efficiency, only using power during the cycle
QUIET
Minimal / low noise pollution
CLEAN
No fluids to replace, condition, or recover eliminating costly downtime

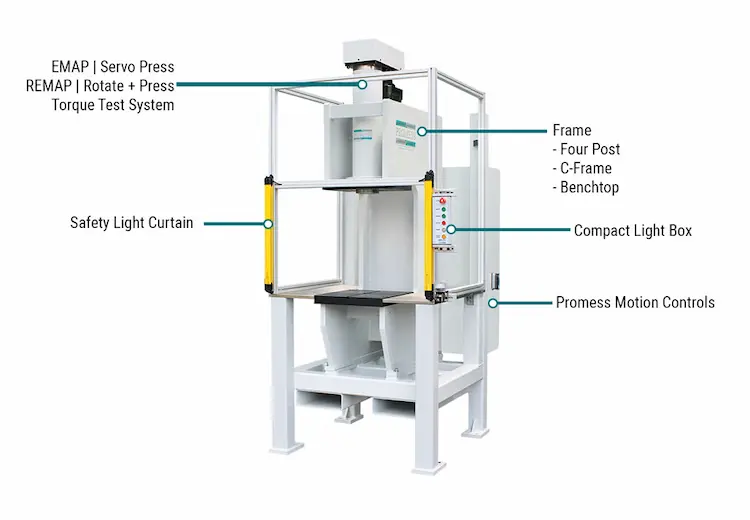

Electric Press Work Station Mechanics
Flexible Configurations and Sizing. Contact us regarding your application.
VIDEO: Work Station
Electric Press Work Station Standard Frame Sizes
Sizing by Motion
Electric Press Sizes
Electric Press Sizes
| Station Size | Force (kN) | Stroke (mm) | Speed (mm/sec) |
|---|---|---|---|
| Size 1 | 1 | 300 | 200 |
| 3 | 300 | 200 | |
| 5 | 350 | 200 | |
| 8 | 350 | 200 | |
| 12 | 350 | 200 | |
| Size 2 | 20 | 350 | 200 |
| 30 | 350 | 200 | |
| Size 3 | 40 | 330 | 200 |
| 60 | 330 | 200 | |
| 80 | 330 | 175 | |
| 100 | 330 | 200 | |
| 120 | 330 | 175 | |
| Size 4 | 160 | 400 | 100 |
| 300 | 400 | 100 | |
| Size 5 | 500 | 400 | 75 |
| 1000 | 400 | 50 |
Press and Rotate Sizes
REMAP Sizes
Linear Axis
| Force (kN) | Stroke (mm) | Speed (mm/sec) |
|---|---|---|
| 1 | 100 | 200 |
| 5 | 200 | 200 |
| 12 | 400 | 200 |
| 20 | 400 | 200 |
| 30 | 400 | 175 |
| 40 | 400 | 200 |
| 60 | 400 | 150 |
Rotational Axis
| Torque (Nm) | Speed (RPM) |
|---|---|
| 20, 50, 100 | 250 |
| 20, 50, 100, 200 | 250 |
| 20, 50, 100, 200 | 250 |
| 20, 50, 100, 200 | 250 |
| 20, 50, 100, 200 | 250 |
| 20, 50, 100, 200 | 250 |
| 20, 50, 100, 200 | 250 |
Torque Sizes
Torque Sizes
| Torque Capacity (Nm) | Torque Capacity (lb-in) | Max Speed (RPM) |
|---|---|---|
| 5 | 44 | 250 |
| 20 | 177 | 250 |
| 50 | 442 | 250 |
| 100 | 885 | 250 |
| 200 | 1,770 | 250 |
| 500 | 4,425 | 100 |
| 1,000 | 8,851 | 75 |
| 2,500 | 22,127 | 20 |
| 5,000 | 44,254 | 10 |
| 10,000 | 88,507 | 4 |
Tailored Solutions
Promess has the ability to tailor our Work Stations to fit your applications, with our extensive experience and expertise we can find a solution for you.
Platen Press
Uniform controlled loads over a large area, capable of forces up to 2,000 kN over an area sized to fit the application.
Gantry Press Work Station
The Gantry gives the Promess Work Station ability to position the EMAP anywhere within the Work Station’s envelope.
4-Post Work Station
4-Post Work Station with Load/Unload Moving Bolster Plate Enabled and Monitored
WHY WORK STATIONS?
- Easy integration, be up and running same day.
- Lower energy consumption and small footprint.
- Scalable to your application, develop then ramp up for production
- Faster lead times
Accessories
Promess has add ons availabile to fit your application. Depending on the application needs the Work Station can be tailored to fit these needs.
Safety Drive Enclosure
The PRO-SDE is the easiest way to add motion control capabilities paired with data acquisition and analysis to any current assembly or testing process.
PRO-Bot2x
Parts can be easily transferred to load/unload positions where they can be interfaced manually or via automation.
Index Table

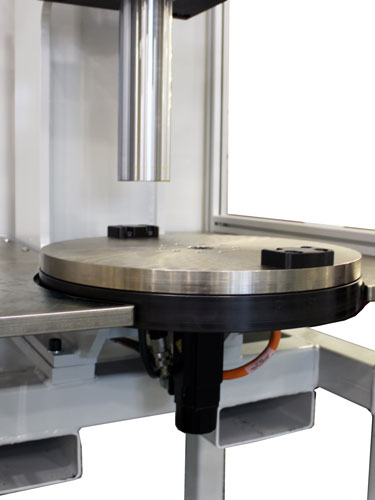

The Index Table was designed to add part loading and indexing capabilities to any Promess Work Station, the unit features load bearing capabilities.
Gantry Station
The Gantry gives the Promess
Work Station ability to position the EMAP anywhere within the Work Station’s envelope.

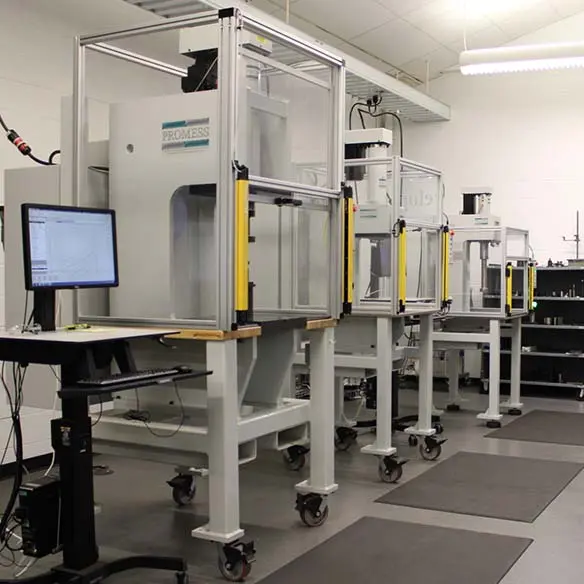

Prove Out Your Process
The PDC is available to you for help verifying your process at no cost to you. Bring in or send in your parts and work with an engineer to find the technology best suited for your application.
