Robot Press L-Series
The Robot Press L-Series is a line of lightweight press systems intended for use as end effectors in robotic assembly applications.
The Robot Press is intended for use in flexible assembly cells where the process requires that the press be brought to the part rather than bringing the part to the press. Part changes or adjustments can be made by changing robotic positioning rather than swapping expensive tooling and die sets, or changing machine designs.
Controllability
- Press motions are fully programmable
- Integrated monitoring and motion control
- Force Feedback
- Presses are equipped with force and position sensors to support intelligent assembly operations
Featuring
- Lighter press design for mobility
- Lubrication system that allows automatic greasing of the ball nut
- Hardened cap to take load, instead of transferring to robot axis
- Robot and flange mounting
Robustness
- Rock-solid mechanical design – use over multiple projects, compounding ROI
- Electronics and mechanics designed to last millions of cycles
- Overload protection built into software to eliminate damaging equipment
FEATURES
Capabilities
Push or pull with equal accuracy
360ยฐ mounting orientation
Easy to use Windows software
Capabilities ranging from less than an ounce to over 200,000 lbs.
Data
Data acquisition and storage
In-process verification and
monitoring
Integrated load cell
Network multiple systems
Robustness
Ball screw design that features
dynamic press load capacity 2.5 to
3 times greater than the stated
load capacity
Servo system sized to reach rated press load capacity in the continuous current range of the motor & drive
Benefits
PRECISE
Control allows for a high level of accuracy in force and position applications
PROGRAMMABLE
Control system and motion components work together in both simple and complex configurations
ENERGY EFFICIENT
Electric Presses are energy conscious and have high efficiency, only using power during the cycle
QUIET
Minimal / low noise pollution, only runs while in cycle
CLEAN
No fluids to replace, condition, or recover eliminating costly downtime
Do You Have an Application?
Talk to one of our expert engineers or learn more about proving your
application in our Process Development Center.
Monitoring Capabilities
Programmable Positions, Speed & Acceleration
Sensor / Signature Monitoring
Adjustable Process Limits & Tolerances
Display of Graphs, Zooming & Printing
Advanced Data Analysis
Gauging Functions
Pass / Fail Parts
Data Acquisition & Storage
System Powered By Promess Software
Promess powerful system software solution offers custom commands, flexible configurations, and adjustable features to address your specific needs.
Features of Promess Software
- Easy to Use
- Traceability
- Data History
Robot Press Mechanics
Complete System
System Includes
- Fully Programmable Axis of Motion
- Integrated Force Transducer
- Promess Controller with Windows Based Software
- All Required Drives, Electronics & Cables
- Integrated Back Stop Motor Mounting Package
- Mounting Block for Easy Robot Installation
Options
- Additional Load Cell Ranges
- Additional Stroke Lengths
- Single Cable Feedback
- Absolute Encoder
Robot Press Applications

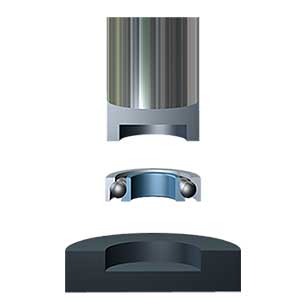

Press to a Shoulder
- Press to a Programmable Force
- Press to Rate of Change
- Gauge and Press to Shoulder
- Gauge Force and Position
Press to a Position
- Press to a Programmable Position
- Press to an External Sensor
- Press to Torque
- Press to Offset

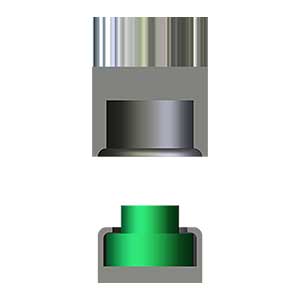

Crimping / Staking
- Crimp to a Programmable Position
- Crimp to a Relative Distance
- Stake to a Dimension

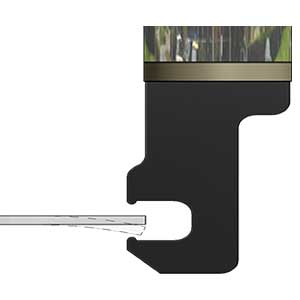

Bending / Straightening
- Bend/straighten to an external measure
- Push and pull to bend/straighten
- Gauge and make Customized algorithms
Looking for a More Tailored Solution?
Looking for a plug and play systems that allows you to be up and running same day as delivery? Learn more about our Work Stations.
Robot Press L-Series Sizing
| FORCE (kN) | STROKE (mm) | SPEED (mm/sec) |
|---|---|---|
| 1 | 100, 300 | 200, 150 |
| 10 | 200, 400 | 300 |
| 20 | 200, 400 | 300 |
| 30 | 200, 400 | 300 |
| 50 | 200, 400 | 300 |
Are you unsure about force requirements – visit our Process Development Center
Prove Out Your Process
The PDC is available to you for help verifying your process at no cost to you. Bring in or send in your parts and work with an engineer to find the technology best suited for your application.
How We Compare to Other Technologies?
When looking for equipment to assemble your parts there are a lot of options. Learn more about how Promess compares to other press technologies.
