Hand Held Press
Hand-Held Press
The fully electric Hand-Held Press provides precision servo press control coupled with built in force and position capabilities, in a lightweight, compact handheld package.
The Hand Held Press is controlled with the standard Promess MotionPRO Controller, giving you all of the power of a standard Promess Servo Press.
Controllability
- Integrated Motion Control
- Integrated Monitoring
- Force Feedback
Repeatability
- Clone your assembly
- Duplicate, precisely for all production
- Fault condition if component is outside parameters for some reason
Capabilities
- Force capacity of 5 kN or 12 kN
- Stroke lengths up to 100 mm
Features
- Fully Electric
- Fully Programmable
- In-process verification and
monitoring - Built-in force and position monitoring
- Data collection and analysis
- Left handed / right handed flexibility
- Two handed trigger switches
- Speed limited to 25 mm/sec for operator safety
BENEFITS
PRECISE
Control allows for a high level of accuracy in force and position applications
PROGRAMMABLE
Control system and motion components work together in both simple and complex configurations
ENERGY EFFICIENT
Electric Presses are energy conscious and have high efficiency, only using power during the cycle
QUIET
Minimal / low noise pollution, only runs while in cycle
CLEAN
No fluids to replace, condition, or recover eliminating costly downtime
What is your application?
Talk to one of our expert engineers or learn more about proving your
application in our Process Development Center.
MONITORING CAPABILITIES
Programmable Positions, Speed & Acceleration
Sensor / Signature Monitoring
Adjustable Process Limits & Tolerances
Display of Graphs, Zooming & Printing
Advanced Data Analysis
Gauging Functions
Pass / Fail Parts
Data Acquisition & Storage
System Powered By Promess Software
Promess powerful system software solution offers custom commands, flexible configurations, and adjustable features to address your specific needs.
Features of Promess Software
- Easy to Use
- Traceability
- Data History

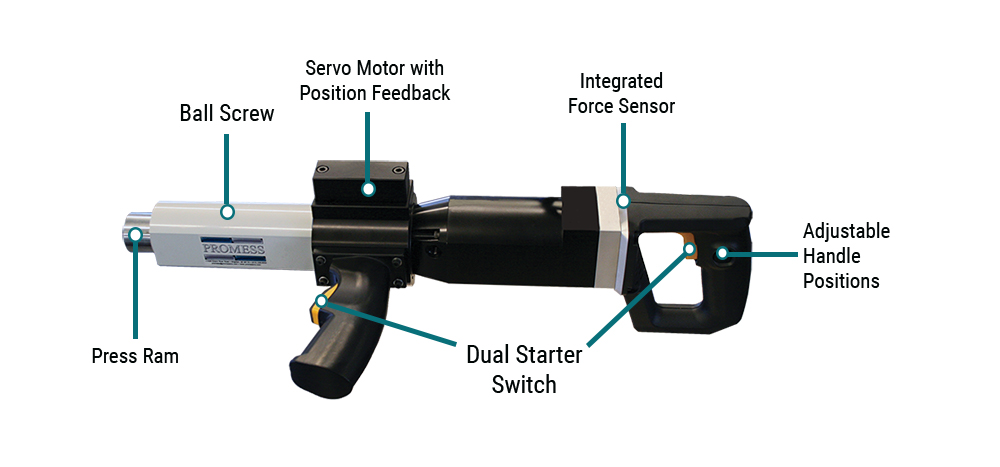

HAND HELD PRESS MECHANICS
COMPLETE SYSTEM
Handheld Press System Includes
- Ball screw servo driven press head
- Integrated force and position transducers
- Servo motor and Preamplifier
- Promess MotionPRO controller
- Windows Based Promess Application software
- Cables
- Motor power cable
- Motor encoder/resolver cable
- Signal cable from preamplifier to motion controller
- External sensor(s) with signal conditioning electronics (optional)
- Components mounted into an optional electrical panel
- Desktop or panel PC (optional)
FLEXIBLE SYSTEM FIGURATIONS
Promess software solutions offer a very high level of flexibility, allowing our customers to configure the system solution to fit their process requirements.
Hand Held Press Applications
Riveting
- Upset Rivet to a Force
- Upset Rivet to a Position
- Rivet to a Dimension
- Rivet to a Function
- Measure Rivet Height
Press-Fit
- Gauge Press Force
- Press to a Position
- Press to a Force
- Press to a Rate
- Multiple Press Fits
Crimping
- Crimp to a Force
- Crimp to a Relative Distance
- Find Touch Point
Staking
- Stake to a Dimension
- Multiple Staking Points
- Stake to a Force
- Measure Stake Depth
Looking for a More Tailored Solution?
Looking for a plug and play systems that allows you to be up and running same day as delivery? Learn more about our Work Stations.
Hand Held Press Sizing
| FORCE (kN) | STROKE (mm) | SPEED (mm/sec) | VOLTAGE (VAC) | WEIGHT (kG) |
|---|---|---|---|---|
| 5 | 100 | 25 | 120 | 9 |
| 12 | 100 | 25 | 120 | 16 |
